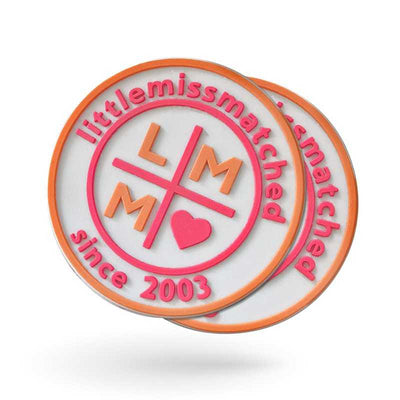

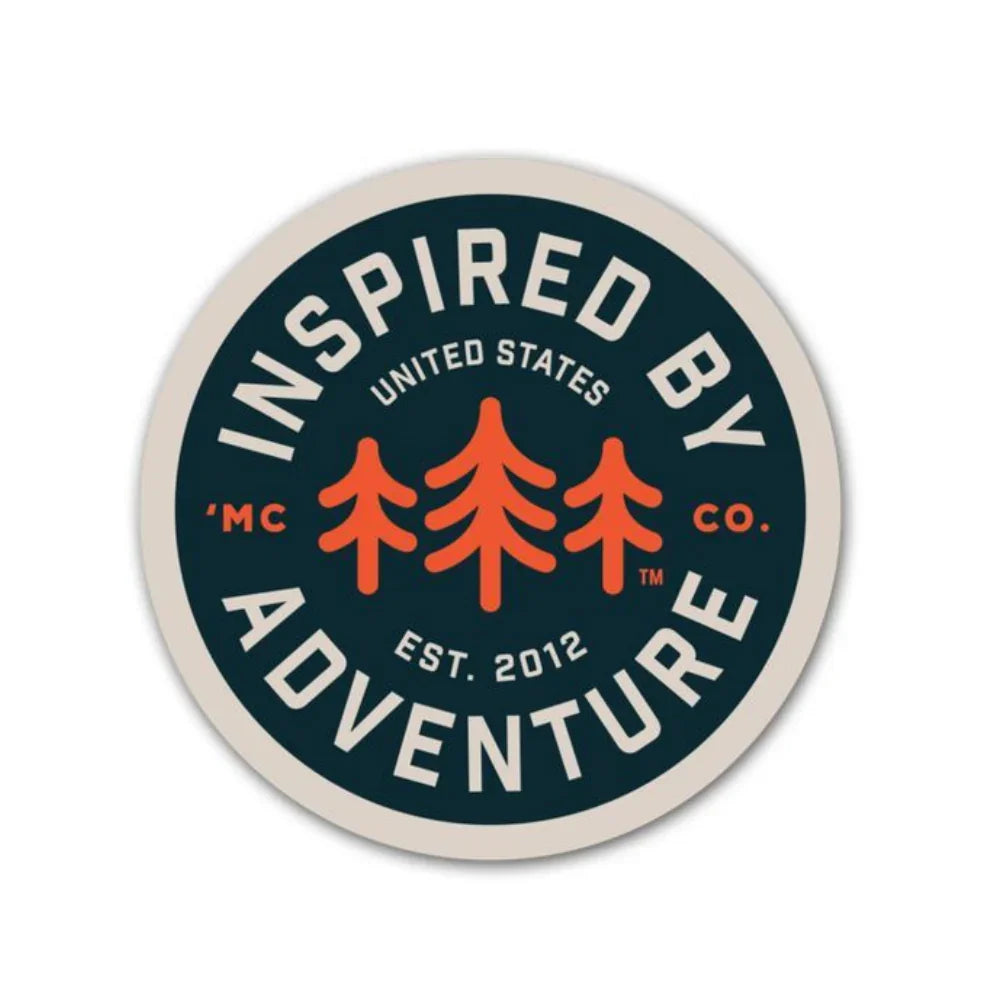

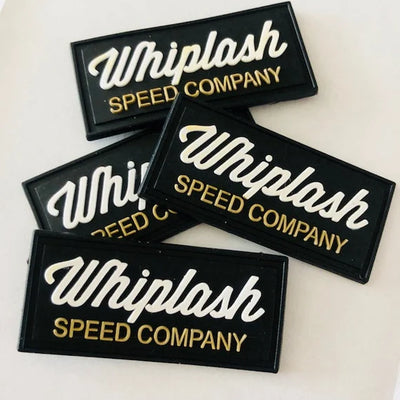

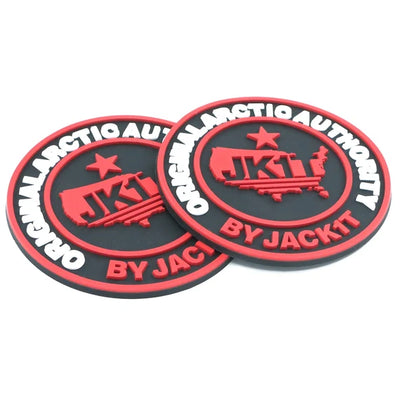

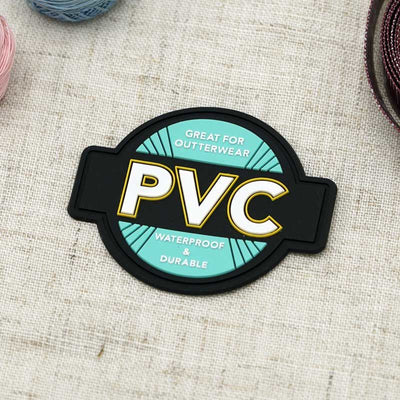

PVC Rubber Patches

Emblem Size Limits

Minimum – 0.5"W x 0.5"
Maximum – 4" x 4"

Text and Elements

Minimum size - 0.6 mm (+/-0.2 mm)

Floating Elements

All PV+ Emblems must have a uniform background that supports every letter and element. Floating elements are not allowed.

Sewing Channel

PV+ Emblems can have a channel for seam application, with the choice of adding a 1 or 2mm outline (for the sewing channel) and a 2mm edge to the design.

Color

A maximum of 4 colors can be used on a single PV+ Emblem to remain within standard turn-times. Please note that any designs with 5-8 colors will cause a delay on production and turn around times. Available colors include:

• Solid colors, without any gradients *
• "Glow in the dark" color
• Pantone color matching is available

* Metallic and neon colors are not available.

Note: Color match may vary between physical pieces and digital renderings due to natural ink behavior on variant background colors.

Backing

• Low melt heat seal
• Pressure-sensitive
• Velcro®

Velcro® - Both the hook and loop sides are included, with the hook side sewn to the emblem. Size restrictions adhere to the product’s minimum and maximum dimensions. Sewing guide is required.

Washing Information

PV+ Emblems will withstand up to 25 domestic washing machine cycles.

Shelf Life

To maximize the shelf life of this product, please keep at room temperature. Do not expose it to temperatures above 485°.

PRESSURE-SENTITIVE

1. Clean application area with rubbing alcohol
2. Remove paper backing, press emblem firmly on desired location

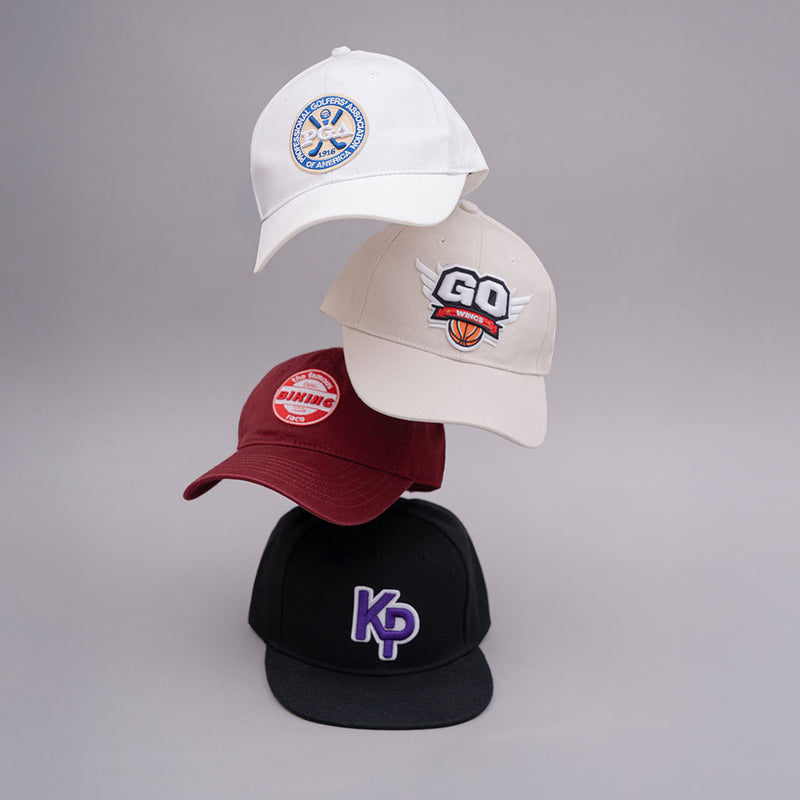

LOW MELT BACKING WITH A 360 IQ™ HAT HEAT PRESS - HATS

• Top Temperature: 350°-360° F
• BottomTemperature: 318°-320° F
• Pressure: 40-50 PSI
• Preheat: 17-20 seconds
• Dwell Time: 17-20 seconds
• Instructions: Place hat on heat press, leaving out the inner layer of the cap. Use a FlexStyle® Silicone Pad to protect the patch.

LOW MELT BACKING WITH TOP HEAT & BOTTOM HEAT - GARMENTS

• Top Temperature: 350°-360° F
• BottomTemperature: 318°-320° F
• Pressure: 40-50 PSI
• Preheat: N/A
• Dwell Time: 17-20 seconds
• Instructions: Place patch on desired location and secure it in place with Thermal Tape. . Use a FlexStyle® Silicone Pad to protect the patch.

LOW MELT BACKING WITH A TOP HEAT PRESS - GARMENTS

• Temperature: 310°-335° F
• Pressure: 50-60 PSI
• Preheat: N/A
• Dwell Time: 18-23 seconds
• Instructions: Place patch on desired location and secure it in place with Thermal Tape. Turn garment inside out and heat press. Use a FlexStyle® Silicone Pad to protect the patch.

Disclaimer

TK Patches recommends testing the best combination of heat seal parameters before application. TK Patches is not liable for any damages to garments during the application process.

Pricing

Using the drop-downs above, you can find the approximate price per item, based on the emblem size and quantity ordered.

To determine the size of your emblem, use the following formula:
Size = Width + Height / 2

Price Includes

Low melt or pressure-sensitive backing.

Add-ons

• 15% increase for "Glow in the dark" ink
• 10% per color for designs over 4 colors
• 25% for velcro backing

Electronic Proof

A digital proof via email is available in 1 day. Edits are allowed.

Set-up Charges

One-time sample and setup fees.

• Electronic Simulation: $25
• Mold Charge: $150
• Edit Sample: $100
• Edit Color: $50

Production Time

Samples will take 2 days plus shipping. Production time will take 4 days plus shipping on an order up to 2,500 pieces. Add 1 day per 750 pieces.

NOTE: All turnaround times are subject to change. Larger orders may result in additional business days for production. Orders received after the cut-off time will be considered as received the next working day.
