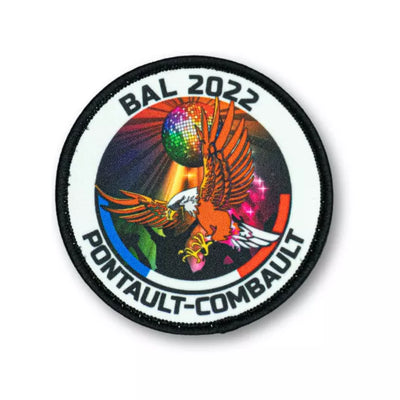

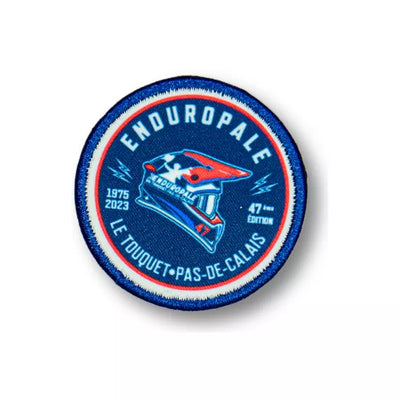

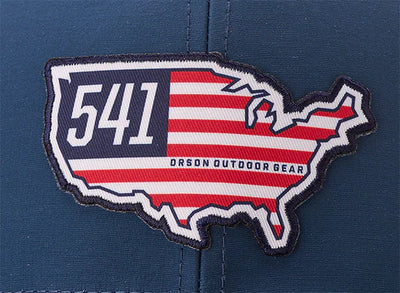

Sublimated Patches

Emblem Size Limits BORDERS

Minimum: 1” X 1”
Maximum: 12” X 12”

Color

Sublimated patches can be made from any color, allowing you to digitally print photorealistic images and even match PMS colors.

BORDERS

• Merrow Border
• Borderless

Backing

• Low melt heat seal
• Industrial heat seal
• Pressure-sensitive
• Velcro®
• No Backing

Backings (lamination) does not cover the merrow border on the emblem. Please consider this when applying to your garments.

Sublimated Patches with merrow border must have a backing.

Limitations

Low melt - Recommended application for thicker materials, such as jackets, and hats that can withstand a heat press and 320°F. Not recommended for use on materials that may be heat sensitive (ex: some nylons, silk, some plastics, leather, wool, fleece, etc.) or for weather-treated materials, due to chemicals used that do not allow the emblems to adhere properly.
Pressure-sensitive - Recommended application is on flat, non-textured surfaces, including glass, plastic, wood, and metal. Not recommended for application on surfaces that may contain an oil finish, such as silicon, Teflon™, rough fabrics, or outdoor goods.
Velcro® – Both the hook and loop sides are included, with hook side sewn to the patch. Size restrictions adhere to the product’s minimum and maximum dimensions. Merrow border required. For emblems larger than 4” height, multiple strips of Velcro will need to be placed side by side.

Washing Information

Machine wash inside-out using mild detergent. Patches withstand 52 domestic wash cycles.

Shelf Life

One year shelf life before applying (room temperature-controlled environment).

PRESSURE-SENTITIVE

1. Clean application area with rubbing alcohol
2. Remove paper backing, press emblem firmly on desired location

LOW MELT BACKING WITH A 360 IQ™ HAT HEAT PRESS - HATS

• Top Temperature: 275°-285° F
• BottomTemperature: 315°-320° F
• Pressure: 60-80 PSI
• Preheat: N/A
• Dwell Time: 16-20 seconds
• Instructions: Place hat on heat press, leaving out the inner layer of the cap. Use a FlexStyle® Silicone Pad to protect the patch.

LOW MELT BACKING WITH TOP HEAT & BOTTOM HEAT - GARMENTS

• Top Temperature: 275°-285° F
• BottomTemperature: 315°-320° F
• Pressure: 60-80 PSI
• Preheat: N/A
• Dwell Time: 16-20 seconds
• Instructions: Place patch on desired location and secure it in place with Thermal Tape. . Use a FlexStyle® Silicone Pad to protect the patch.

LOW MELT BACKING WITH A TOP HEAT PRESS - GARMENTS

• Temperature: 315°-325° F
• Pressure: 70-80 PSI
• Preheat: N/A
• Dwell Time: 14-18 seconds
• Instructions: Place patch on desired location and secure it in place with Thermal Tape. Turn garment inside out and heat press.
• Optional: For delicate fabrics such as nylon, lycra, 100% polyester, etc. use a FlexStyle® Silicone Pad over garment for protection.

INDUSTRIAL HEAT SEAL

• Top Temperature: 395°-405° F
• BottomTemperature:395°-405° F
• Pressure: 60-80 PSI
• Preheat: N/A
• Dwell Time: 10-14 seconds
• Optional: For delicate fabrics such as nylon, lycra, 100% polyester, etc. use a FlexStyle® Silicone Pad over garment for protection.

Disclaimer

TK Patches recommends testing the best combination of heat seal parameters before application. TK Patches is not liable for any damages to garments during the application process.

Pricing

Using the drop-downs above, you can find the approximate price per item, based on the emblem size and quantity ordered.

To determine the size of your emblem, use the following formula:
Size = Width + Height / 2

Price Includes

Heat seal or pressure-sensitive backing

Add-ons

• 25% increase for metallic thread
• 10% per color for designs over 6 thread colors
• 10% increase for thread colors not available on the World Emblem thread chart
• Add $1.65 each for personalization (name droppers)

Electronic Proof

A digital proof via email is available in 1 day. Edits are allowed.

Set-up Charges

One-time sample and setup fees.

• Up to 4.00”: $30
• 4.01 - 6.00”: $40
• 6.01 - 8.00”: $60
• 8.01 - 10.00”: $80
• Edits: $25

Production Time

Samples will take 1 day plus shipping. Production time will take 1 day plus shipping on an order up to 2,500 pieces. Add 1 day per 2,500 pieces.

NOTE: All turnaround times are subject to change. Larger orders may result in additional business days for production. Orders received after the cut-off time will be considered as received the next working day.
